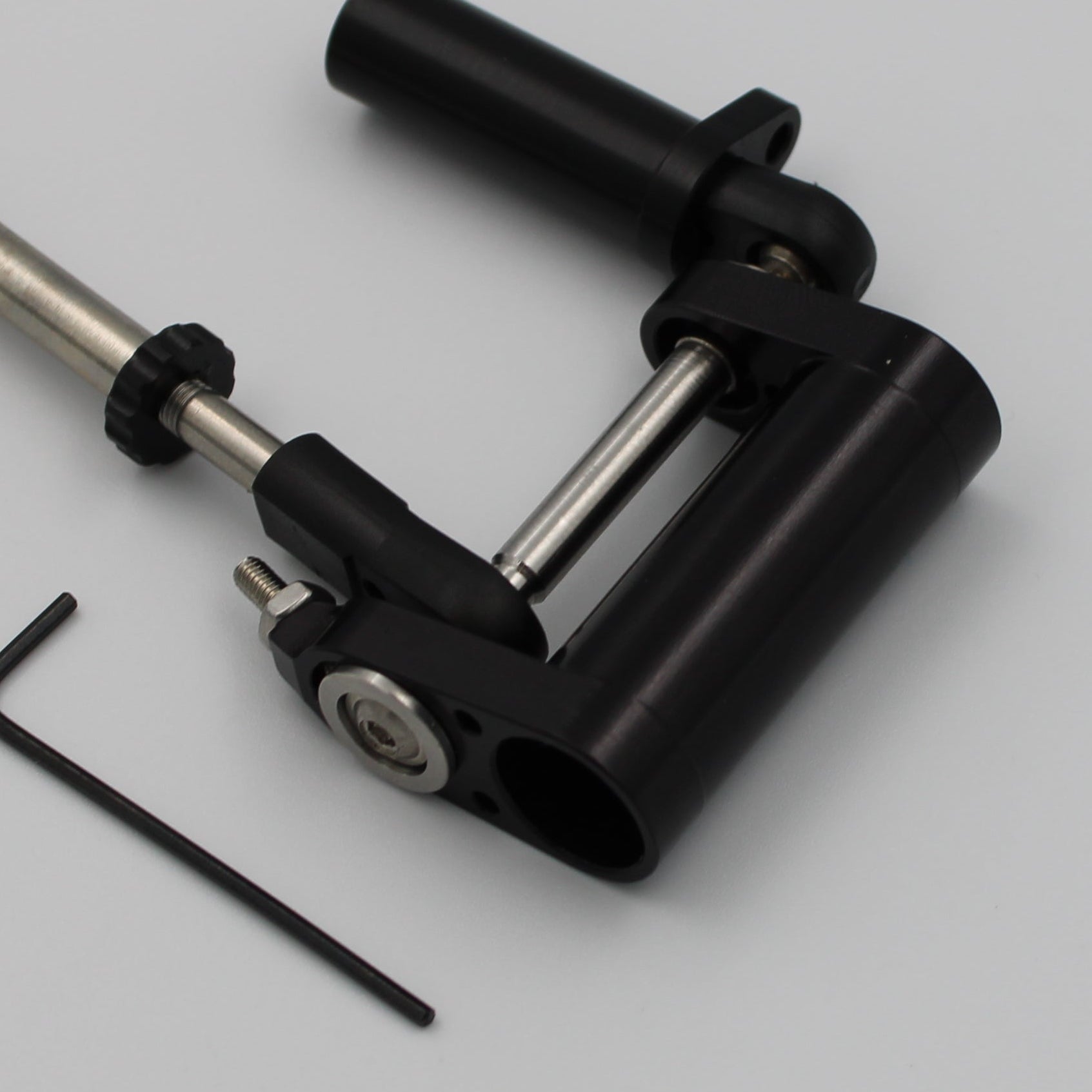

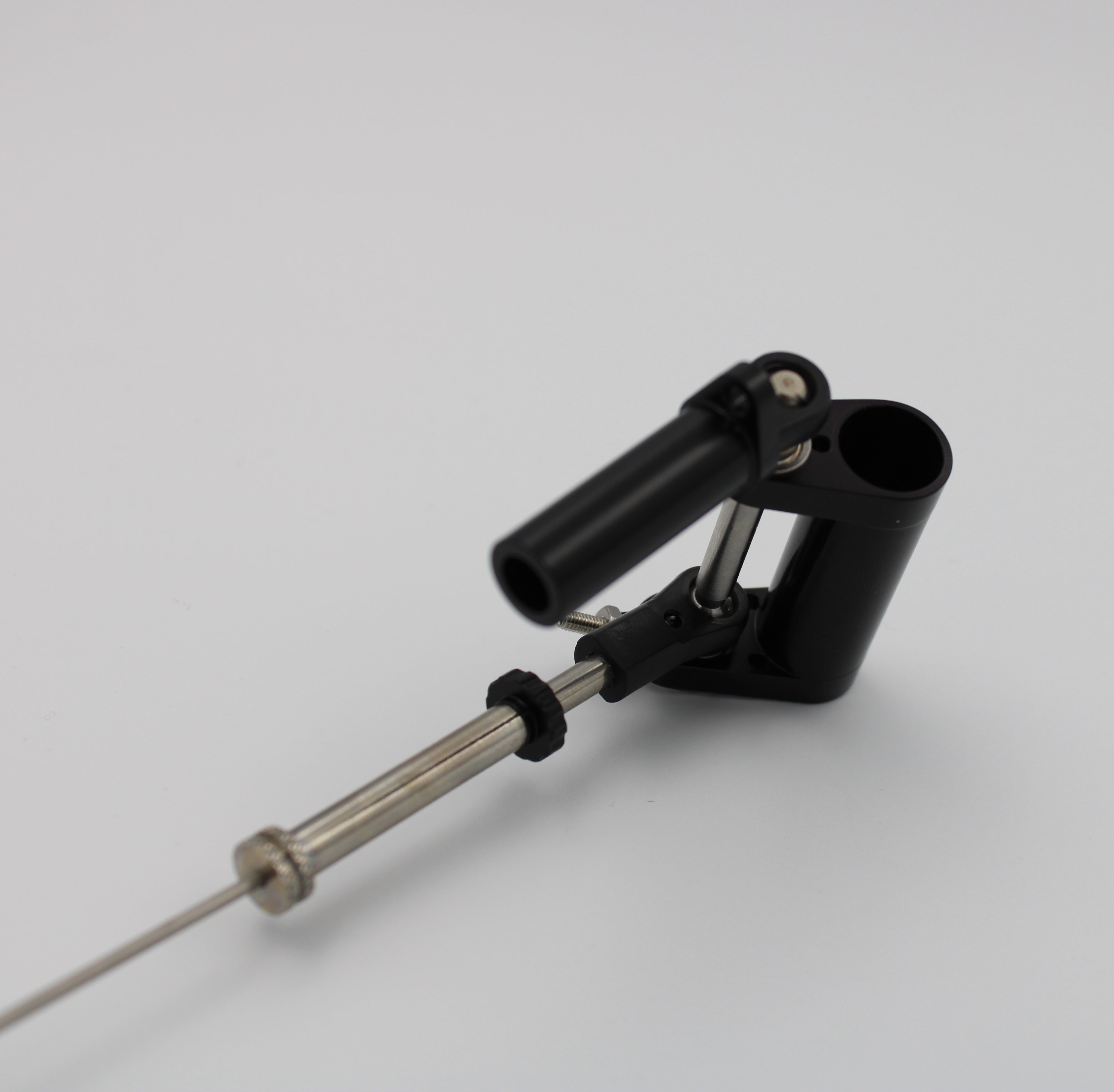

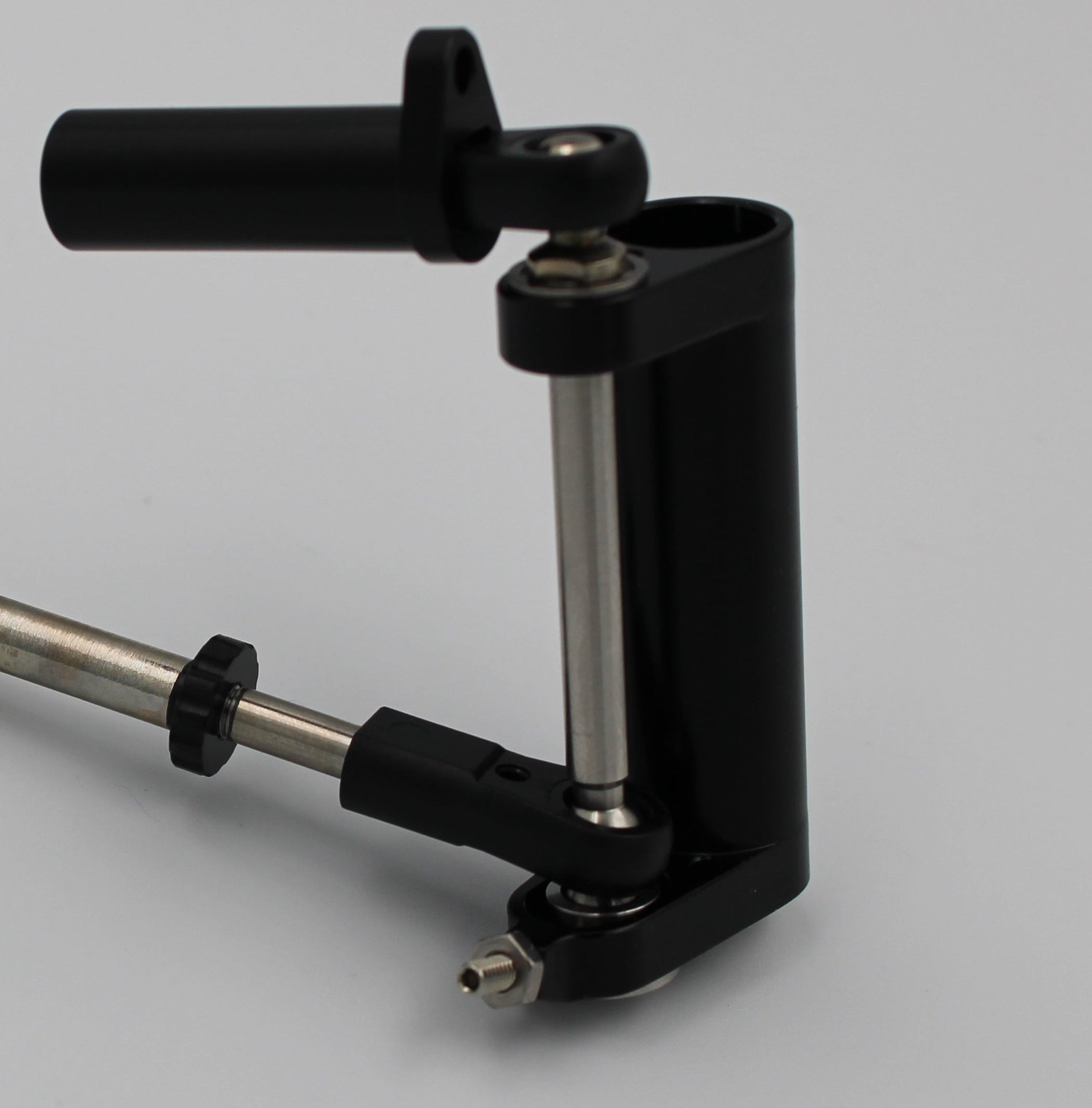

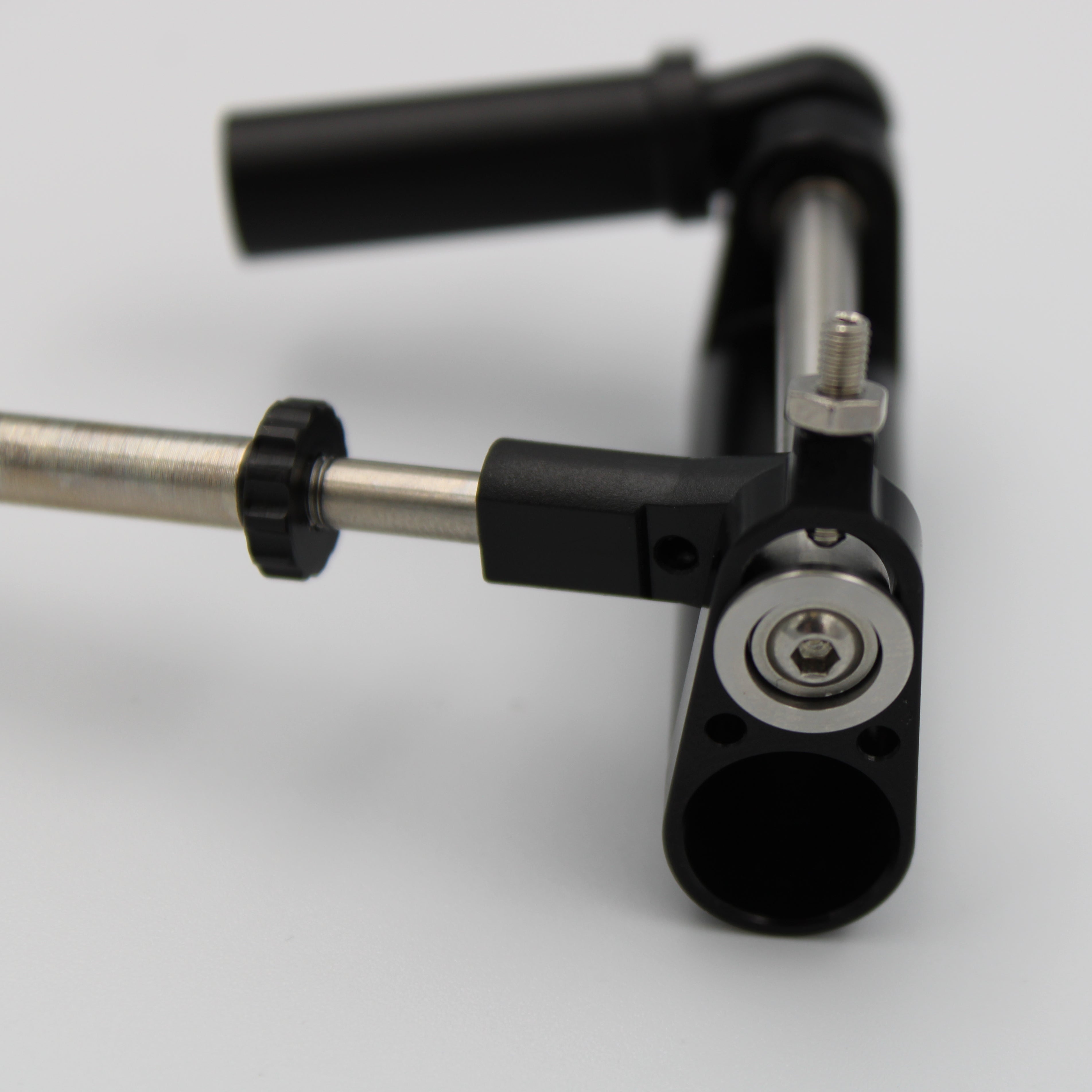

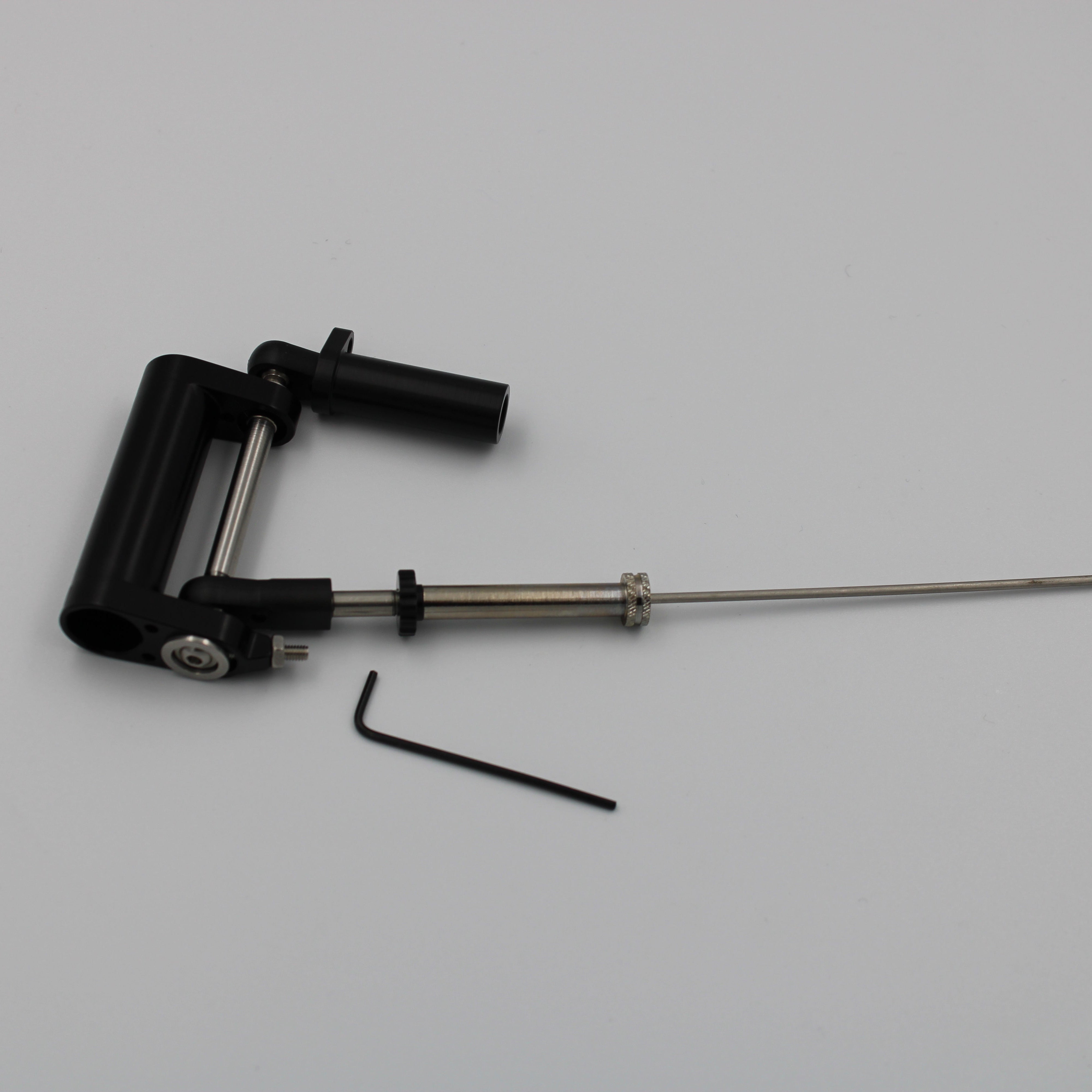

PW15H Adjustable Angle Ballraced Gooseneck & Kicker Assembly

* Updated Version Rev2 *

* Updates Included , Upgraded Top Boom Attachments PW71F Along with New Stainless Center Shaft And Stainless Bearing Cup that removes slack on the pivot point and makes the whole unit easier to service.


Manufactured from Billet Aluminium ensuring top and bottom brackets Are prefectly in line .

Easy to fit ,and no need to drill any holes in the mast just slide it over the mast and glue in place .

It gives you the ability to set up the offwind mainsail twist seperately to the upwind twist . ( Not new ) but here in an easy to install form ,

Availble in two sizes to fit 11.0mm tubes and 12.7 mm tubes . Also available in two configerations 70mm boom height and 62mm boom height for in mast recesses as shown below

Each frame has a hole to attach a jackline tensioner . Also 2 holes To attach downhaul bowsies in the bottom part of the Gooseneck Body.

Adjustment of the shaft angle is via an Stainless Steel allen bolt and lock nut

Choose Main Boom Fitting to suit your requirement.
10mm Alloy , 7/16” Alloy , 11mm Lightweight , 12mm Carbon or an Oval Plastic Lug that can be filed to fit any oval or rectangle Boom.

Instructions HERE

Spare Bearings Available HERE
